PE/PP Pipe Extruder Machine- PE Water supply pipe extrusion line
The production line of PE and PP gas water supply pipes produced by Qingdao Interplast Machinery Co.,Ltd is mainly used for the production of agricultural water supply and drainage, building water supply and drainage, cable laying and so on. The unit consists of a vacuum qualitative table, a tractor, a cutting machine, and a turning rack. The single-screw extruder and the traction machine adopt imported AC frequency conversion speed regulating device, and the vacuum pump and traction motor are all made of high quality products. The tractor is driven by two claws, three claws, four claws, six claws, eight claws, ten claws, and twelve claws. Available with chipless cutting, saw blade cutting or planetary cutting, the unit has reliable performance and high production efficiency. The company can produce inner wall spiral tube, inner wall hollow tube and core layer foam tube unit to replace the extruder according to the requirements of the user. It can produce PP, PE, ABS, PPR, PEX, silicon core tube and other materials. Pipe. The planetary cutting machine adopts fully automatic computer numerical control, which has the advantages of convenient operation and reliable performance, and has reached the international leading level.
Pressure Rate: PN1.0/1.25/1.6/2.0/2.5
110-315mm HDPE pipe extruder machine Consist of:
1,90/36 High efficient single screw extruder: Adopting alloy screw, high efficient
2,Die and mould: Adopting 45Cr steel forming, inside fan system
3,Vacuum calibration tank: 9m length
4,Cooling tank 2 sets: 6m length to guarantee the cooling
5, Cutting machine: chippless cutter
6,Stacker: with rubber rollers to convey the finish pipe;
7,Computer spray code machine: as choice
8,Chiller: as choice
Parameter
Model | HSPE-75 | HSPE-160 | HSPE-250 | HSPE-315 | HSPE-630 | HSPE-800 |
Main extruder | SJ-60*38 | SJ-75*36 | SJ-75*38 | SJ-90*36 | SJ90*38 | SJ-120*38 |
Auxiliary mode | SJ-30*25 | SJ-30*25 | SJ-30*25 | SJ-30*25 | SJ-45*30 | SJ-45*30 |
Diameter Range | 16-75 | 75-160 | 90-250 | 110-315 | 315-630 | 500-800 |
Output | 200 | 300 | 400 | 500 | 900 | 1200 |
Production Speed | 1-20 | 0.5-12 | 0.2-6 | 0.2-4 | 0.06-3 | 0.05-2 |
Total installed capacity | 110 | 180 | 250 | 280 | 430 | 600 |
75-250MM HDPE pipe extruder machine complete production line
Extruder and Die head(three layers ABA type Die head)
Vacuum Calibration tank and cooling tank
Haul-off Machine with Servo Motor
Cutting Machine
Finish hdpe pipe

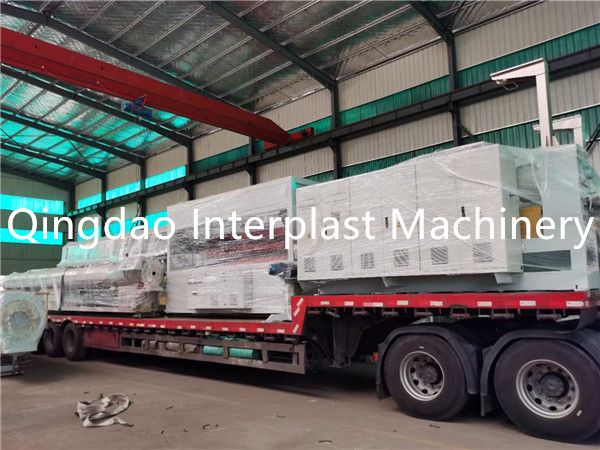

Delivery of HDPE pipe extrusion machine
500-800MM HDPE pipe Machine
